Oxygen Valve Manufacturer
To meet the needs for shutting off and isolating industrial oxygen pipelines, we offer the JY41W series of oxygen-specific shut-off valves, available in various pressure ratings and material configurations.
Based on pipe diameter, operating pressure, temperature, and material requirements, we can help you select the valve model best suited for your specific oxygen application.
Oxygen Valve Product Range
To meet the needs for shutting off and isolating industrial oxygen pipelines, we offer the JY41W series of oxygen-specific shut-off valves, available in two nominal pressure ratings—PN2.5 MPa and PN4.0 MPa—as well as various valve body material configurations. You can select the appropriate oxygen-specific valve based on pipeline size, operating pressure, and project material requirements.

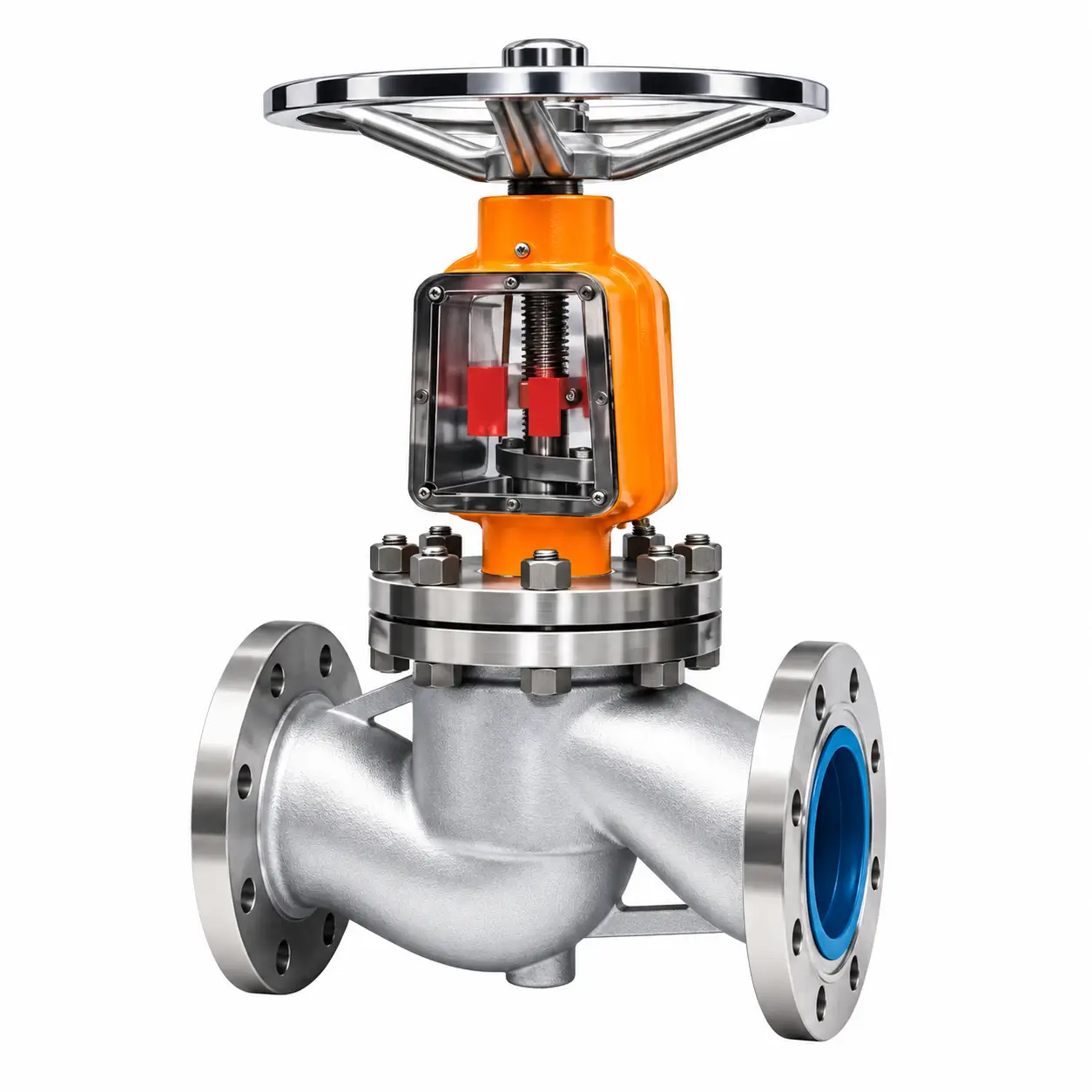

Stainless Steel Oxygen Globe Valve
Models: JY41W-25P / JY41W-40P Constructed of stainless steel and available in various pressure ratings, these valves are suitable for shutting off industrial oxygen lines at ambient temperatures. PN2.5 / PN4.0 MPa

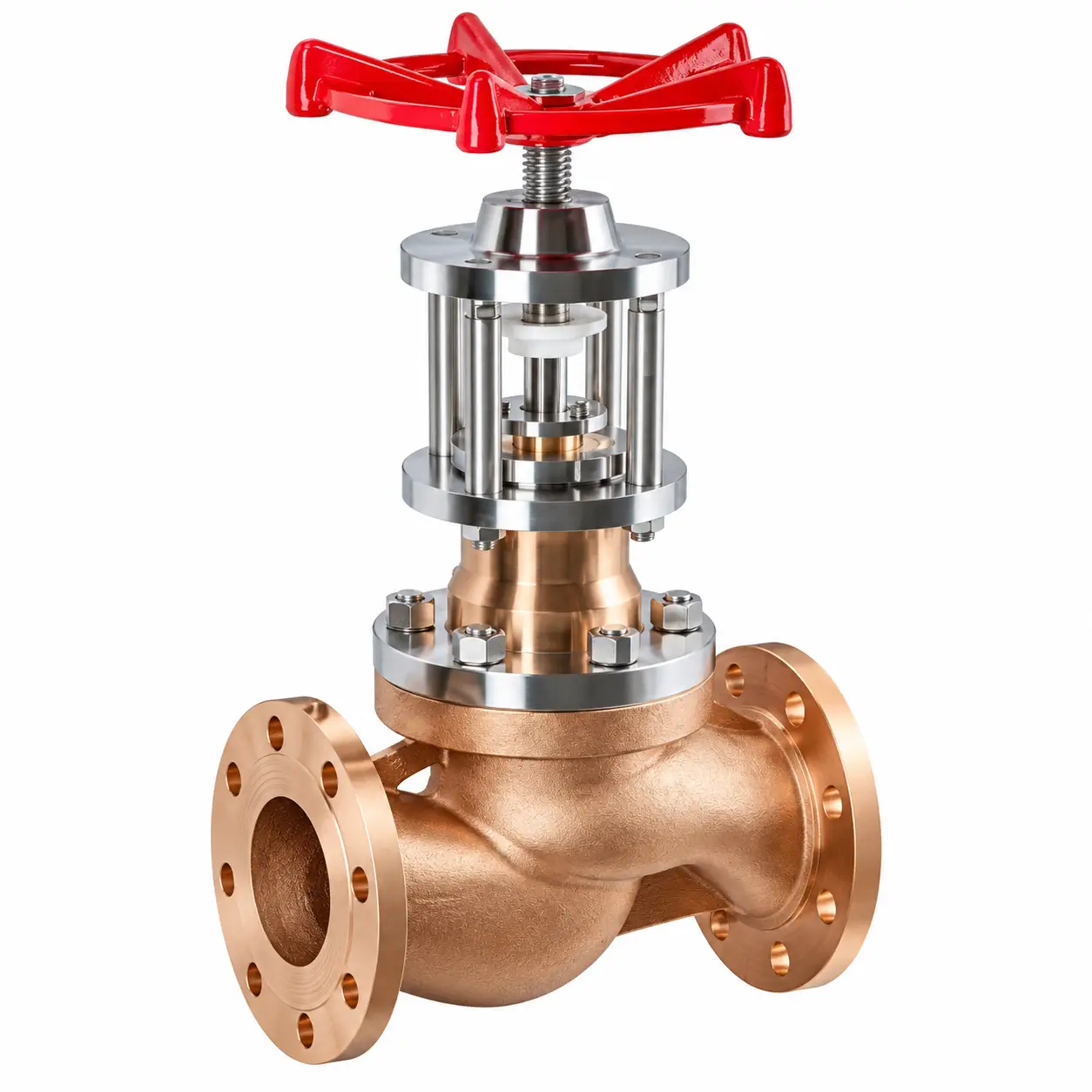

Copper Alloy Oxygen Globe Valve
Models: JY41W-25T / JY41W-40T Featuring a copper alloy valve body, these models provide shut-off valve options for industrial oxygen pipelines with specific material requirements. PN2.5 / PN4.0 MPa
Available Oxygen Valve Configurations
| Product Model | Nominal Pressure | Body Material Category |
|---|---|---|
| JY41W-25P | PN2.5 MPa | Stainless Steel |
| JY41W-25T | PN2.5 MPa | Copper Alloy |
| JY41W-40P | PN4.0 MPa | Stainless Steel |
| JY41W-40T | PN4.0 MPa | Copper Alloy |
Various Connection Types
In industrial projects, check valves must comply with the corresponding connection methods and installation requirements.
Oxygen Valve Applications & Selection Guide
Industrial Oxygen Pipelines
Used to open and shut off industrial oxygen pipelines at room temperature, helping to isolate fluid flow between different pipeline sections.
Selection Focus: Working Pressure · Pipe Size · Body Material
Oxygen Distribution Systems
For industrial oxygen distribution piping, install appropriate oxygen-grade shut-off valves based on the pressure, connection size, and material requirements of each branch line.
Selection Focus: Nominal Pressure · Connection Size · Material Compatibility
Equipment Inlet & Maintenance Isolation
Suitable for equipment inlets and process pipelines that require an oxygen shut-off point, facilitating the shutdown of pipeline sections and isolation for maintenance in accordance with operating procedures.
Selection Focus: Operating Conditions · Valve Size · Installation Requirements
Looking for the Right Valve?
Tell us your medium, pressure, temperature, valve size or application. Our team will help you find a suitable valve solution and provide a quotation.
Frequently Asked Questions
1. What Is the Difference Between an Oxygen Valve and a Standard Globe Valve?
Valves designed specifically for oxygen must take into account the characteristics of oxygen as a medium, with particular emphasis on material compatibility, internal cleanliness, and installation and usage requirements.
Even if they have the same pipe diameter and pressure rating, standard globe valves cannot be used directly in oxygen piping without undergoing an oxygen suitability assessment.
For oxygen applications, degreasing, cleaning, inspection, and acceptance requirements must also be confirmed in accordance with project specifications.
2. What Materials Are Available for Oxygen Globe Valves?
The JY41W series includes valve body configurations made of both stainless steel and copper alloys.
The choice of material should be based on the pressure, temperature, and material compatibility of the oxygen system, as well as the project’s technical specifications, rather than solely on price.
If your project specifies a particular material grade, please provide the technical requirements when requesting a quote so we can verify them further.
3. Can Oxygen Valves Be Used for High-Pressure or Cryogenic Oxygen Service?
If your application involves higher pressures, liquid oxygen, or cryogenic temperatures, you must independently verify the appropriate materials, design, and applicable standards; standard room-temperature oxygen valves cannot be used as direct substitutes.
4. How Do I Select the Right Oxygen Valve Size?
When selecting an oxygen valve, you need to comprehensively consider the pipe size, medium flow rate, operating pressure, and connection requirements.
If you have already determined the pipe DN, you can further match the valve by referring to the size chart for the corresponding JY41W model.
If the specifications have not yet been determined, we recommend providing the actual operating conditions and pipe design parameters to facilitate model selection and verification.
5. Do Oxygen Valves Require Special Cleaning Before Installation?
Oxygen systems have strict requirements regarding grease, particulates, and other contaminants inside valves.
Therefore, when purchasing valves specifically designed for oxygen systems, it is important to clearly define the degreasing and cleaning standards, cleaning validation, packaging, and on-site installation requirements applicable to the project.
If you require relevant cleaning or testing documentation, it is recommended that you request it during the request-for-quote stage to confirm the technical delivery conditions for the specific order.
