Reliable pressure protection solutions for industrial systems.

Our pressure relief valve solutions are selected according to operating pressure, temperature, medium characteristics and application requirements to help protect equipment from overpressure conditions.

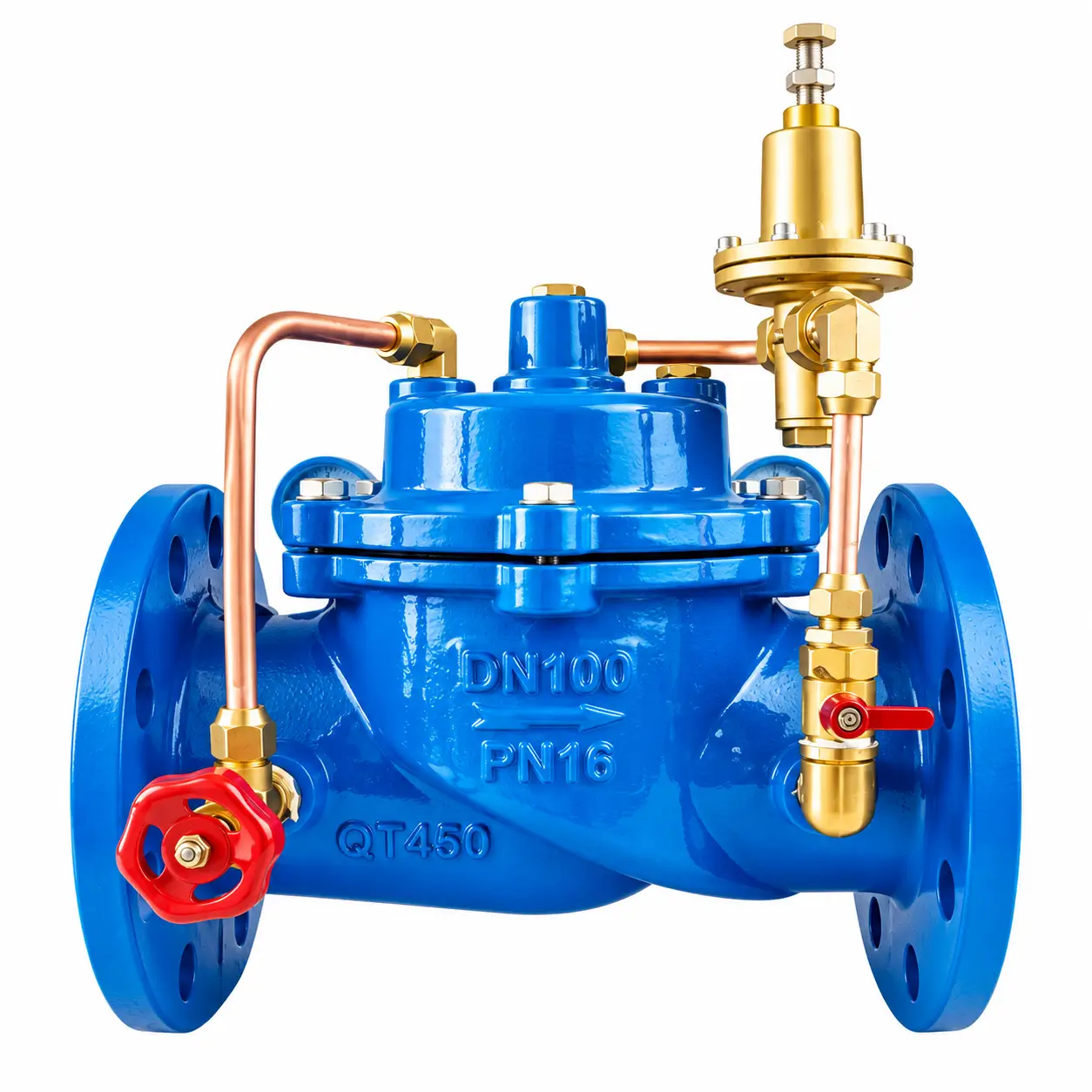

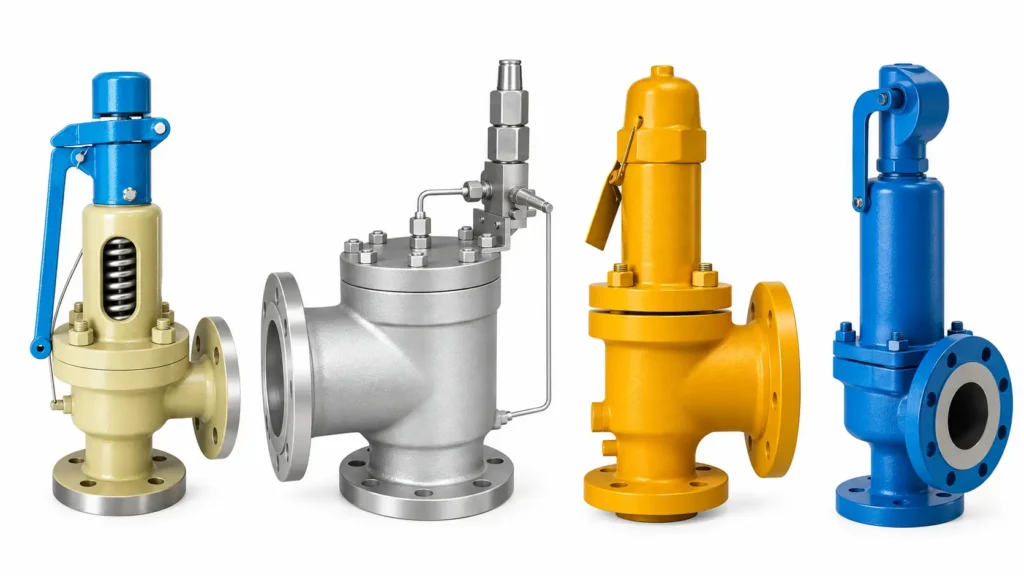

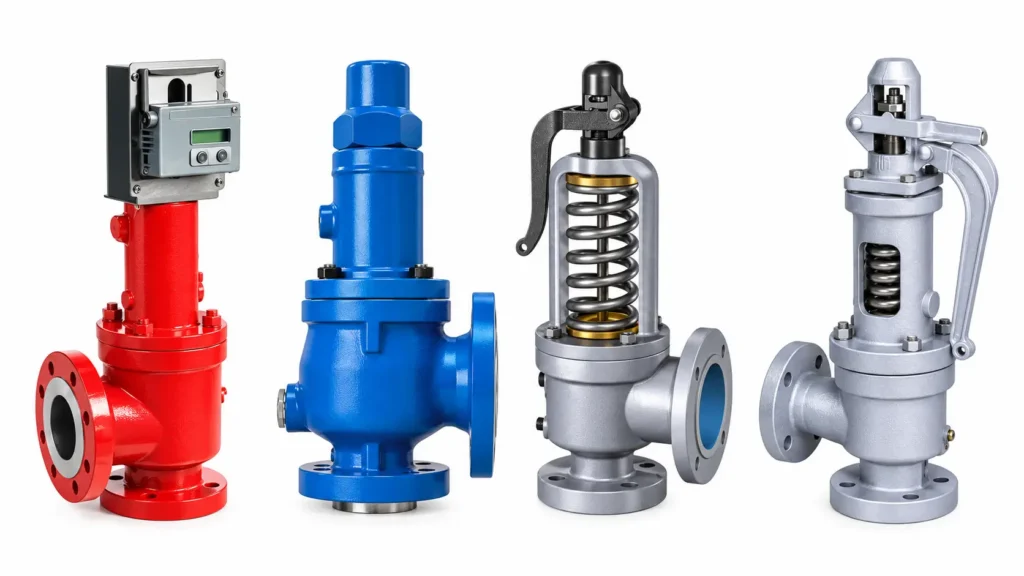

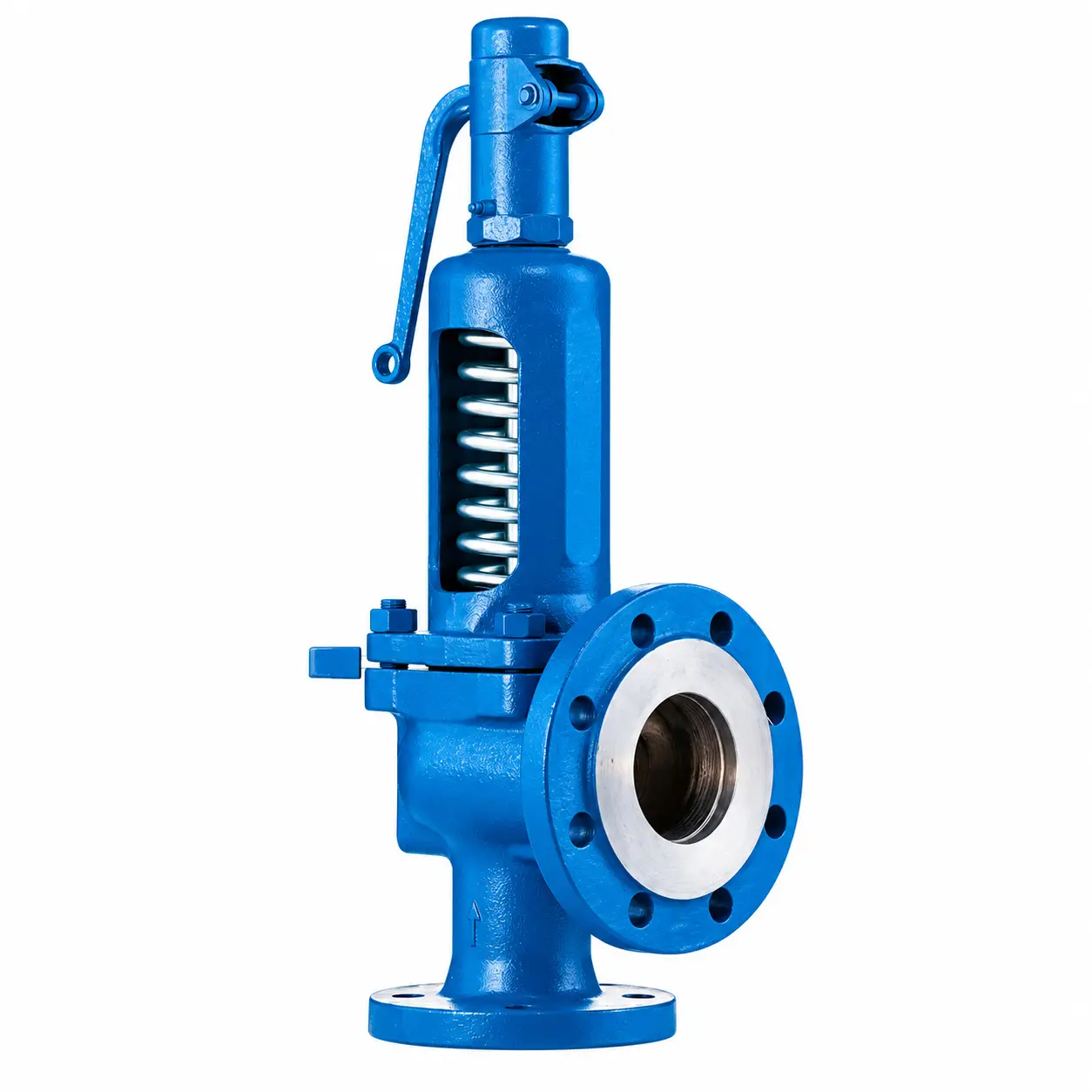

Pressure Relief Valve Product Range

Pressure relief valves are primarily used to prevent systems from exceeding their design pressure due to abnormal pressure increases. They automatically open to release the pressure of the medium, thereby helping to protect equipment and piping systems. Different applications have varying requirements for the structure, materials, connection methods, and set pressure of pressure relief valves.

Custom Pressure Relief Valve Design

Sizing, Set Pressure and Capacity

The proper selection of a pressure relief valve depends not only on the valve size but also requires comprehensive calculations based on system pressure, the properties of the medium, and the required relief capacity.

Unlike ordinary on-off valves, the key parameters of a pressure relief valve include:

Valve Size
Set Pressure
Relief Capacity

These three parameters collectively determine whether the valve can effectively protect equipment in the event of overpressure.

Selection Parameter	Required Information	Why It Matters	Engineering Consideration
Medium	Steam / Gas / Liquid / Chemical Media	Determines calculation method and material compatibility	Different media require different capacity calculations and sealing materials
Operating Pressure	Normal system working pressure	Defines the regular operating condition	Valve should remain stable during normal operation and avoid unnecessary opening
Set Pressure	Required opening pressure	Determines when the valve starts relieving pressure	Must be selected according to equipment protection requirements
Maximum Allowable Pressure	Equipment or system pressure limit	Defines the upper safety boundary	Set pressure should be coordinated with equipment design requirements
Temperature	Operating and design temperature	Affects material selection and valve performance	High or low temperature conditions may require special materials
Required Relief Capacity	Required discharge flow	Determines valve size and flow area	Capacity must be sufficient to protect the system under overpressure conditions
Valve Size	Inlet / Outlet Connection Size	Ensures installation compatibility	Size selection should be based on calculated capacity, not pipe size alone
Back Pressure	Discharge system pressure	Influences valve performance	Important for discharge piping and valve operating characteristics
Material Selection	Body, Seat, Spring and Sealing Materials	Ensures compatibility with operating conditions	Selected according to medium, temperature and corrosion requirements
Connection Type	Flanged / Threaded / Customized Connection	Determines installation method	Must match pipeline standards and project requirements
Service Condition	Continuous operation / Emergency protection	Defines operating requirements	Frequent operation and emergency-only service may require different considerations
Application Standard	Project specification or industry requirement	Ensures compliance with customer requirements	Applicable codes depend on market, industry and equipment type

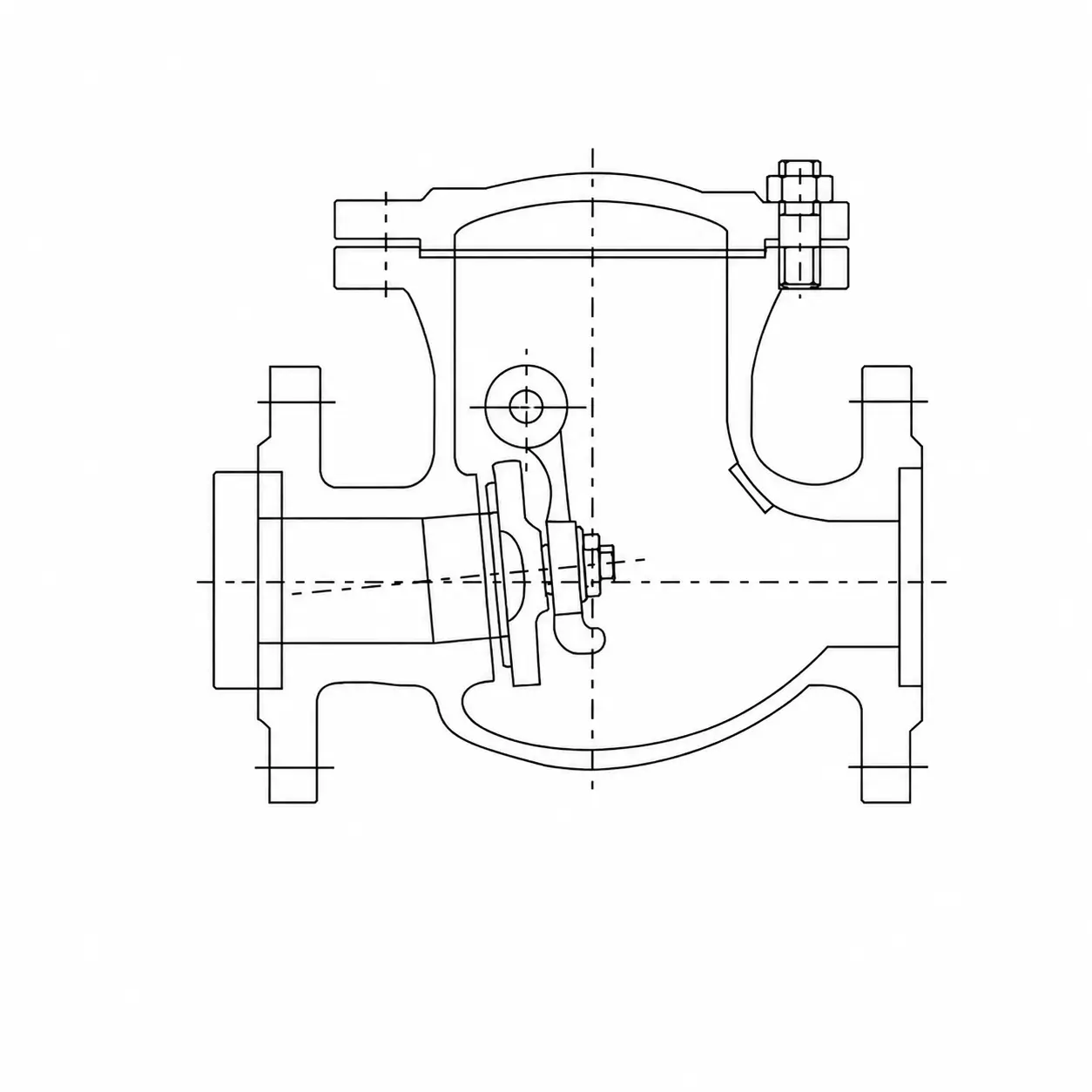

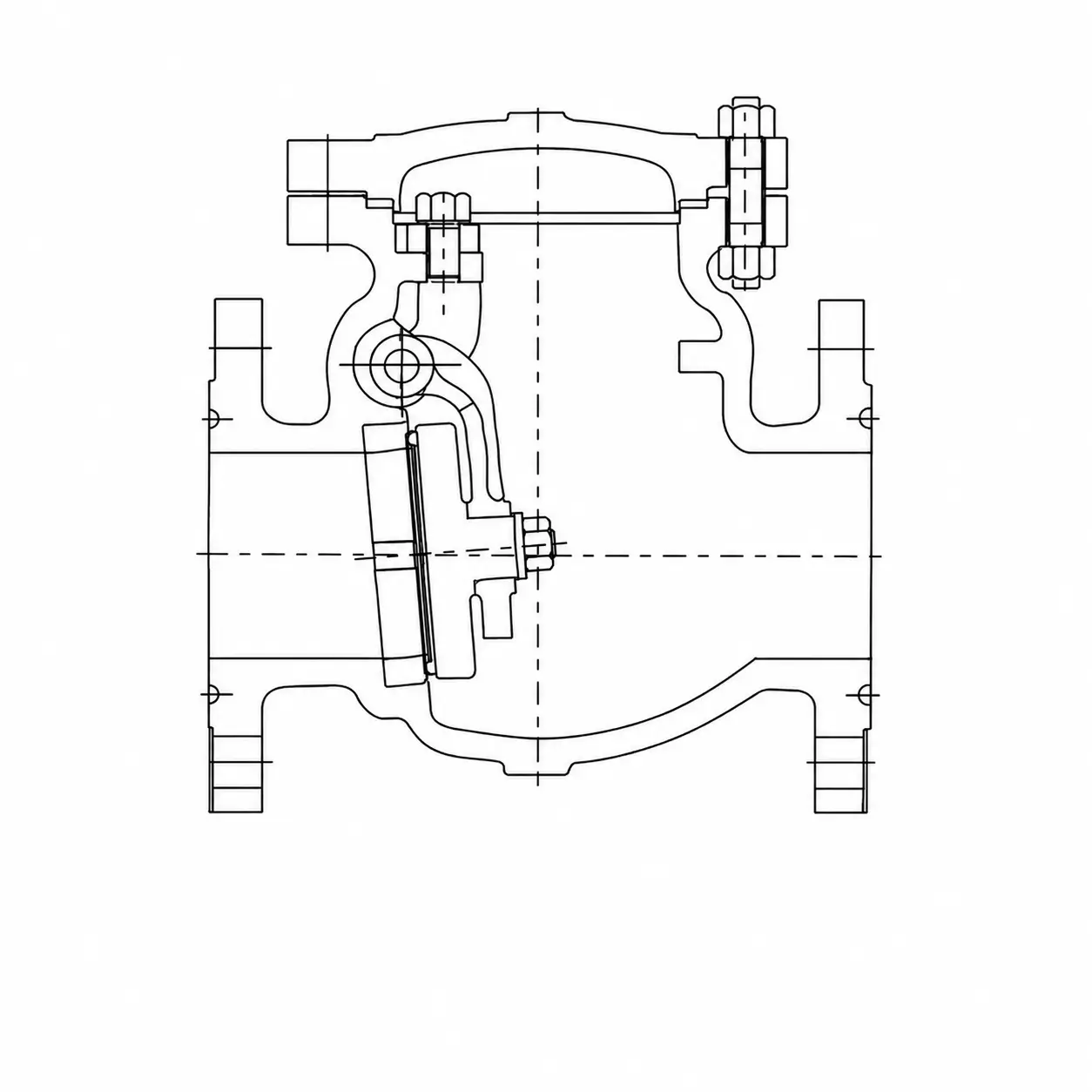

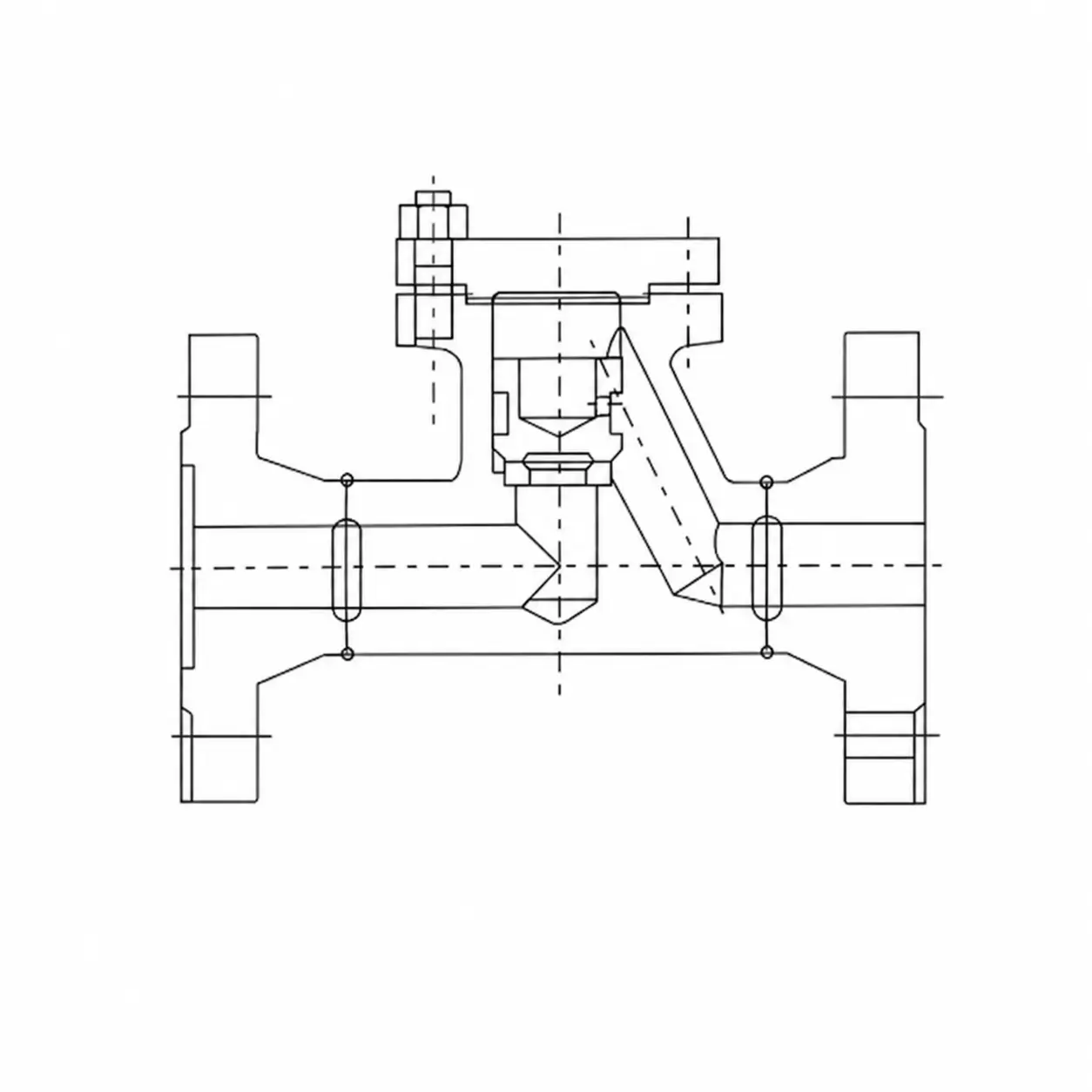

Various Connection Types

In industrial projects, check valves must comply with the corresponding connection methods and installation requirements.

Pressure Relief Valve Applications

Pressure Relief Valves are primarily used for overpressure protection in industrial systems. When system pressure exceeds a preset value due to abnormal operating conditions, the pressure relief valve automatically opens to release some of the medium’s pressure, helping to protect pressure vessels, piping, and process systems.

Steam and Boiler Systems

Steam systems are subject to significant fluctuations in temperature and pressure, so they require reliable pressure relief devices.

Pressure relief valves are commonly used in:

Boilers
Steam headers
Steam pipelines
Heat transfer equipment

For boilers and steam equipment, pressure relief valves must be selected to match the equipment’s design pressure and safety requirements.

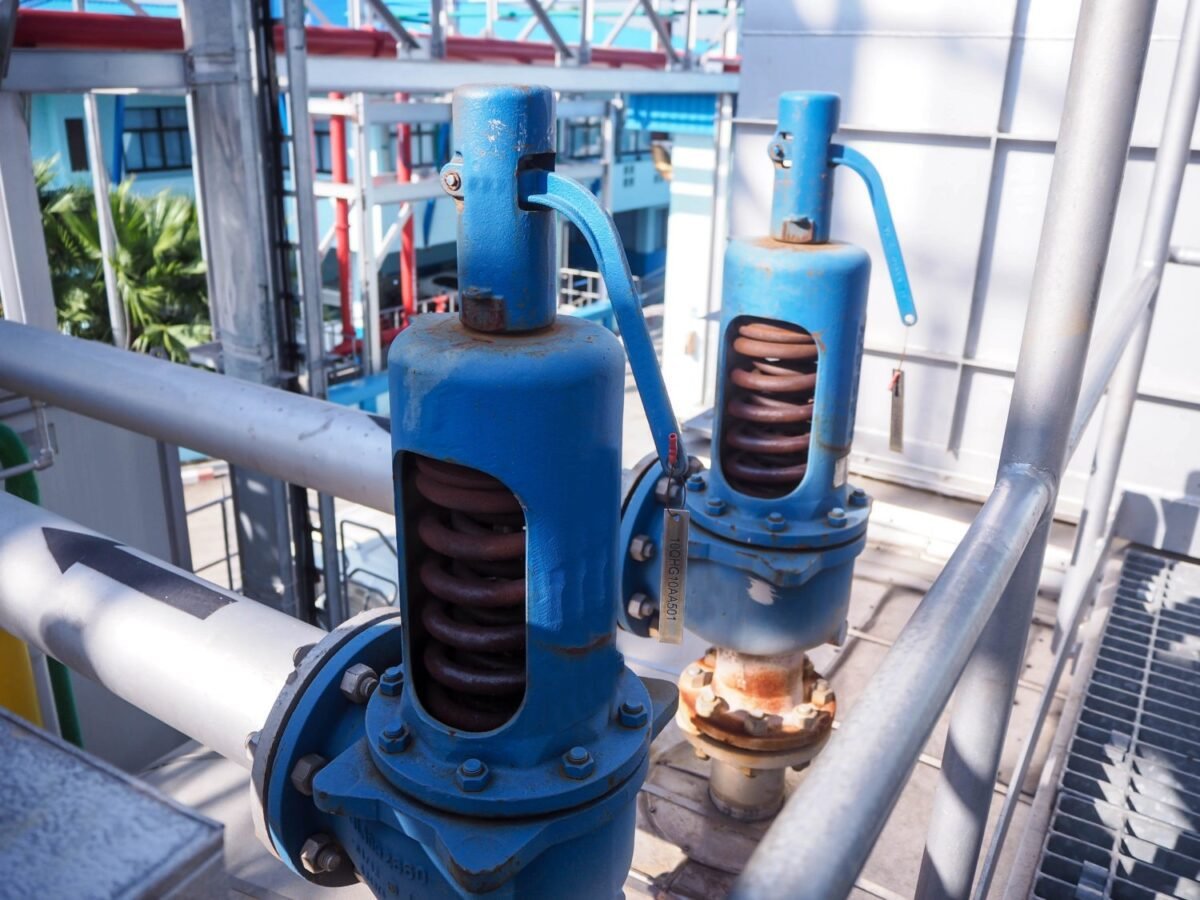

Pressure Vessel Protection

Pressure vessels must be equipped with pressure relief devices to prevent internal pressure from exceeding the design range.

Common Applications:

Storage Tanks
Reactors
Process Vessels
Gas Containers

The selection of pressure relief valves should not be based solely on vessel size; the required relief capacity must also be calculated based on actual operating conditions.

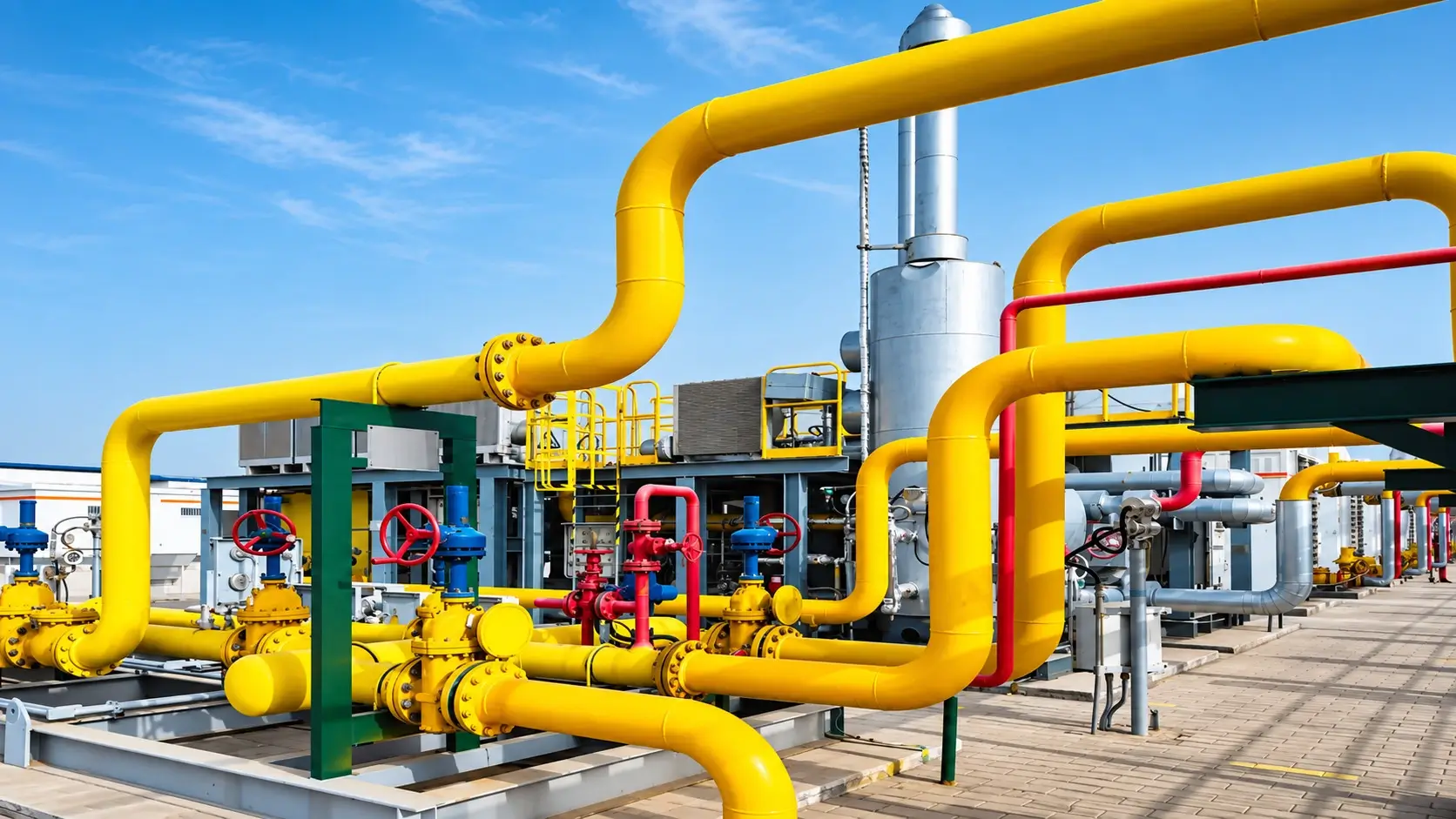

Oil and Petrochemical Systems

Petrochemical plants involve significant pressure fluctuations and a wide variety of process media, making pressure protection a critical component.

Typical Applications:

Process Equipment
Oil Transfer Systems
Chemical Processing Units
Storage Systems

For media containing corrosive or special chemical components, it is essential to verify the compatibility of the valve body and sealing materials with the media.

Gas Systems

Due to their high compressibility, gas media require rapid and reliable pressure relief protection in the event of abnormal pressure conditions.

Applications include:

Industrial Gas Systems
Natural Gas Systems
Process Gas Pipelines

Pressure Relief Valve FAQ

1. What Is a Pressure Relief Valve?

A pressure relief valve is an automatic pressure protection device used to safeguard equipment and piping systems.

When system pressure exceeds a preset value due to abnormal conditions, the valve opens and releases some of the medium’s pressure, reducing the system pressure to a safe range.

It is primarily used for:

– Protection of pressure equipment
– Protection of piping systems
– Protection of industrial process systems

The primary function of a pressure relief valve is not routine flow control, but rather to provide protection in the event of abnormal pressure conditions.

2. What Is the Difference Between a Pressure Relief Valve and a Safety Valve?

In the industrial sector, the two terms are often used interchangeably.

Pressure relief valves are primarily used in liquid media, industrial process systems, and hydraulic systems. When selecting one, the focus should be on pressure relief capacity, set pressure, and media compatibility.

Safety valves, on the other hand, are primarily used in steam systems, gas systems, and boiler equipment. When selecting one, the focus should be on rapid opening, discharge capacity, and system protection requirements.

In actual projects, the definitions and usage of these two types may vary depending on industry standards; therefore, they must be confirmed based on the specific application.

3. How Does a Pressure Relief Valve Work?

The pressure relief valve opens when the system pressure reaches the set pressure.

Operating Process:

Normal Operation: When the system pressure is below the set value, the valve remains closed.

↓

Overpressure Condition: When the system pressure reaches the set pressure, the valve opens.

↓

Pressure Relief: The medium is discharged, and the system pressure drops.

↓

Normal Condition:

Once the pressure returns to normal, the valve closes again.

4. What Testing Is Required for Pressure Relief Valves?

Common items of interest include:

– Pressure Testing
– Leakage Check
– Set Pressure Verification
– Functional Testing

5. Why Choose a Pressure Relief Valve Manufacturer?

Industrial pressure relief products require not only the valves themselves, but also:

– The ability to select the correct model
– The ability to match materials
– An understanding of operating conditions
– The ability to provide documentation support

A reliable supplier must help customers verify:

Whether the valve design is suitable → Whether the materials are properly matched → Whether the pressure setting is correct → Whether the application is safe and reliable.
